TTArtisan 6Bit Adapter Upgrade Tutorial

STEP.1

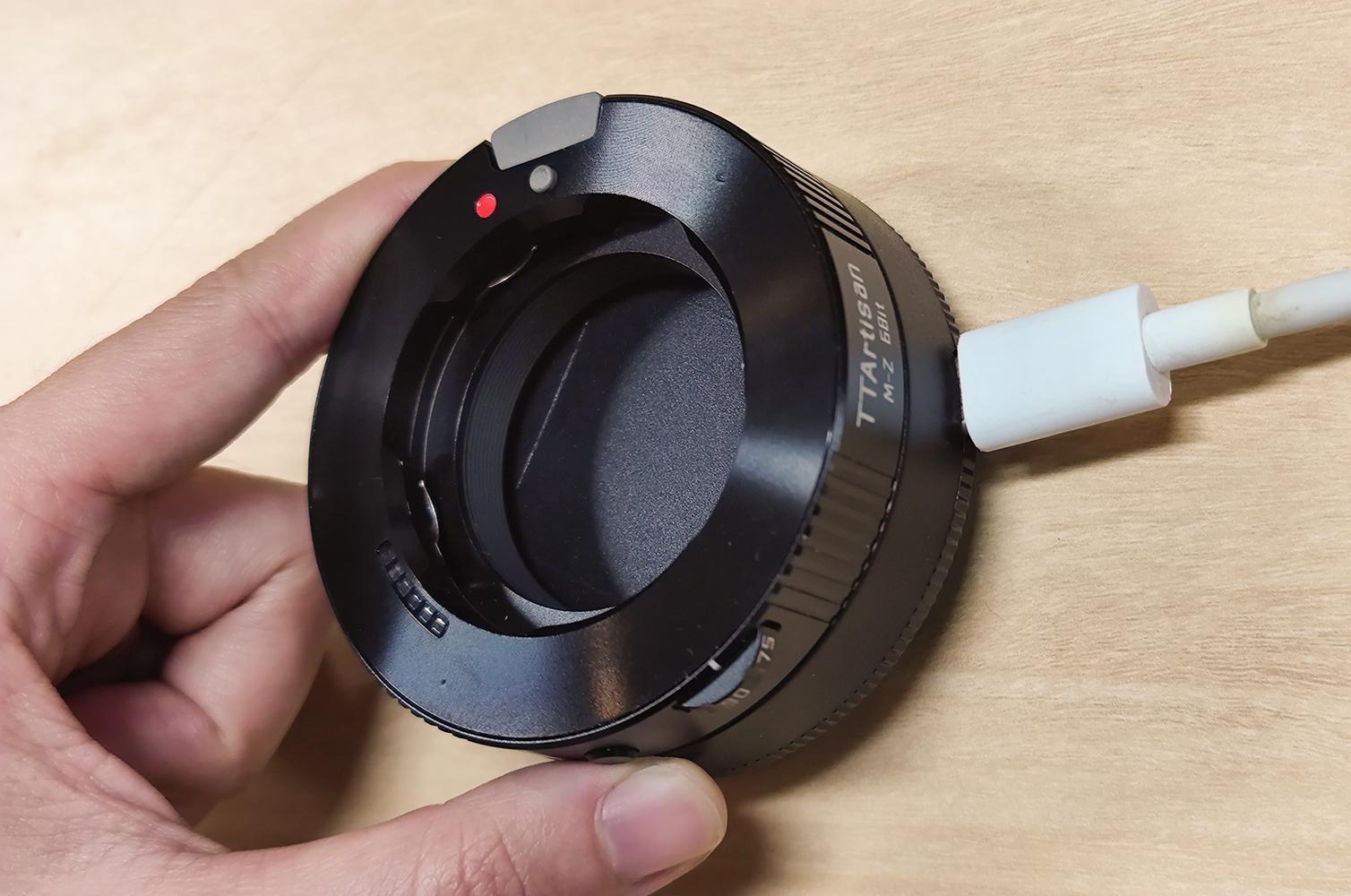

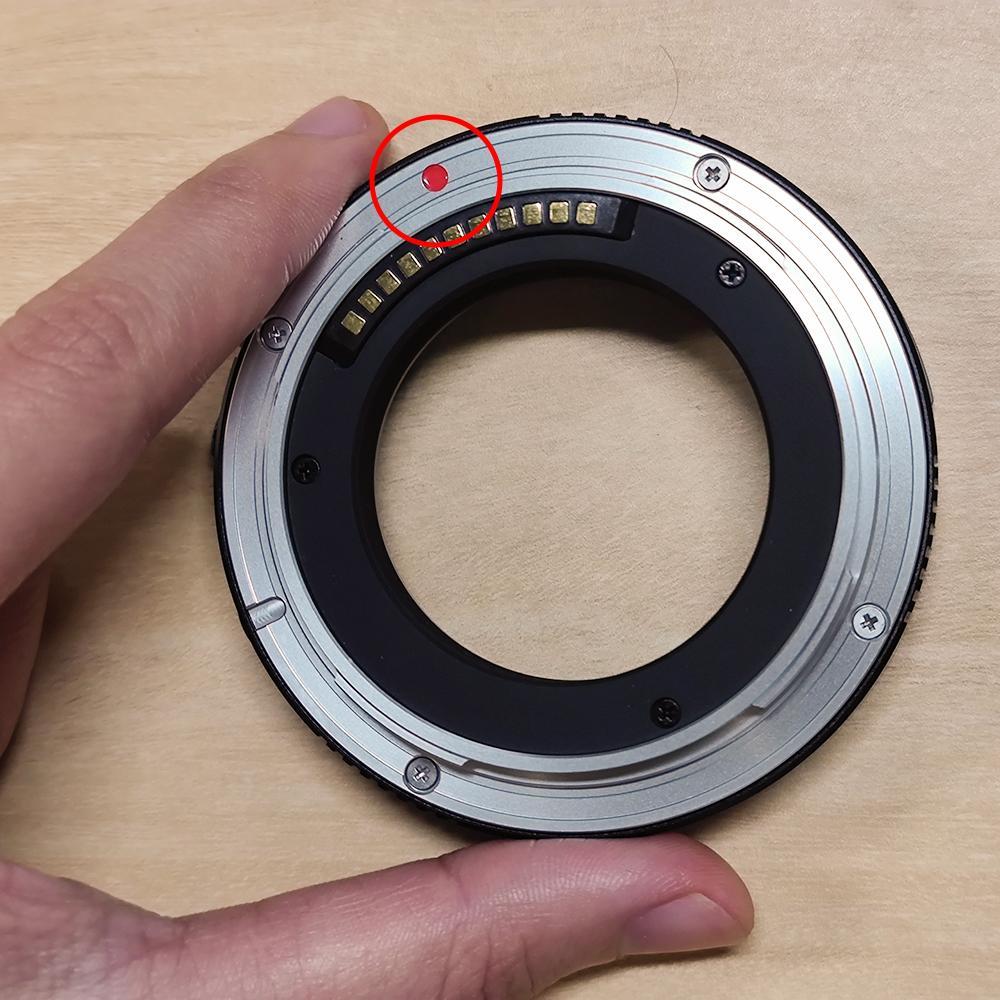

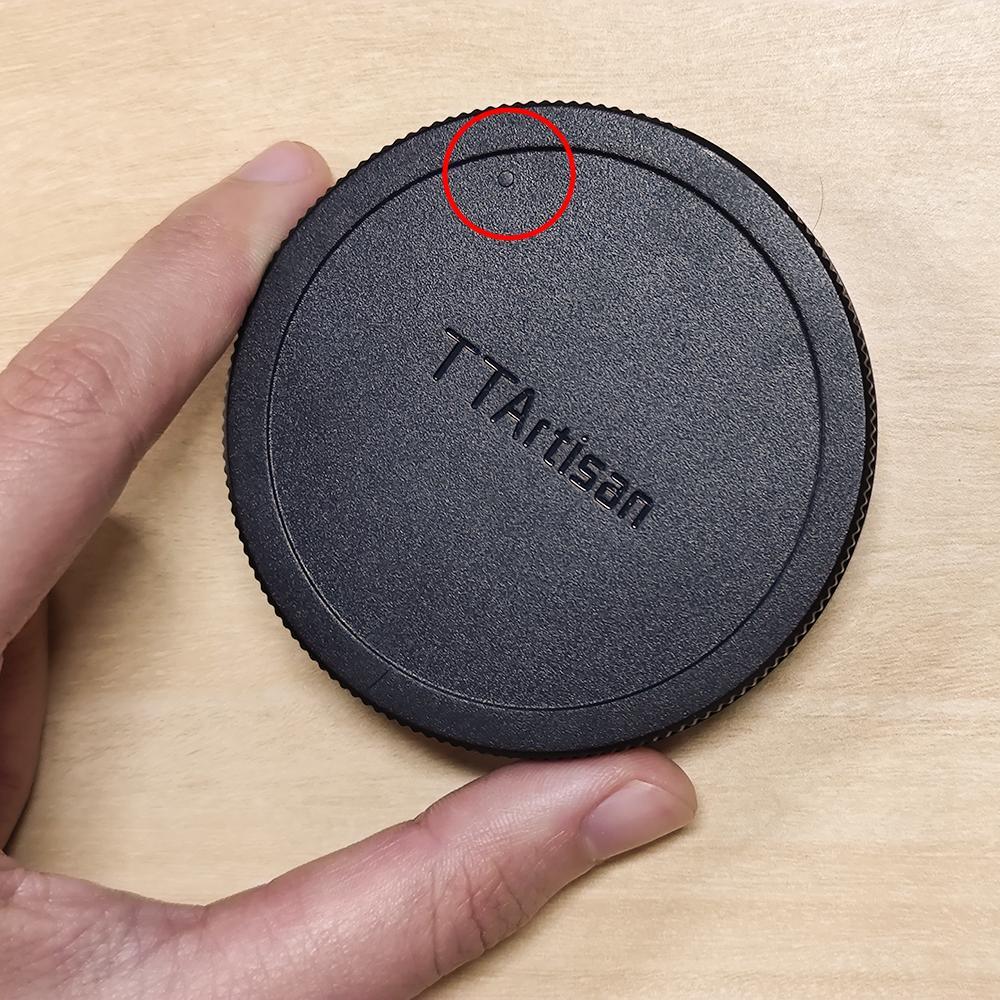

Find the small bump on the rear cap and the red dot on the mount (as shown in Figures 1 and 2).

1
2

STEP.2

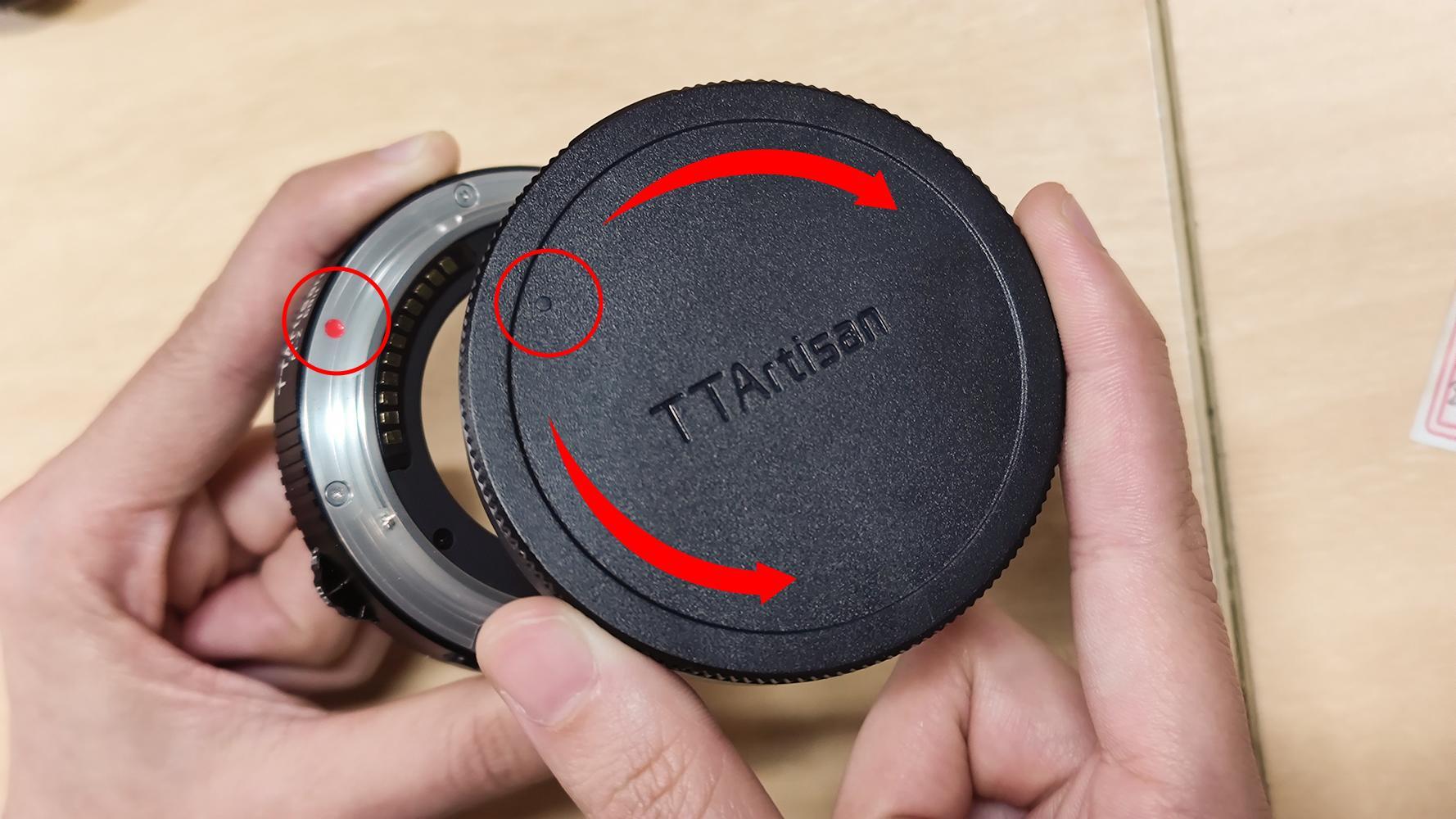

Align the small bump with the red dot and snap it in,then turn the rear cap clockwise until you hear the sound of snapping (as shown in Figures 3).

3

STEP.3

Use the Type-C USB cable to connect the rear cap to the computer, and check whether there is a USB drive on the computer. If not, try repeatedly plugging and unplugging the USB-A port on the computer side until it works (as shown in Figures 4).

4

STEP.4

Find the "TTARTISAN" USB drive (as shown in Figures 5).

5

STEP.5

Click the "DeviceInformation.txt" in the USB drive to check the version number (as shown in Figures 6).

6

STEP.6

Right-click on the upgrade firmware file -> Send to -> TTARTISAN (as shown in Figures 7).

7

STEP.7

Waiting for the copy progress bar to complete (as shown in Figures 8).

8

STEP.8

When the copy progress bar completed, that means the upgrade is completed, eject the "TTARTISAN" USB drive and unplug the Type-C USB cable (as shown in Figures 9).

9

LAST STEP.

Wait 5 seconds and then reconnect to the computer via Type-C USB cable, then click TTARTISAN->DeviceInformation.txt to check the version number. If it is the latest version number, the firmware update is successful(as shown in Figures 10).

10
