STEP.2

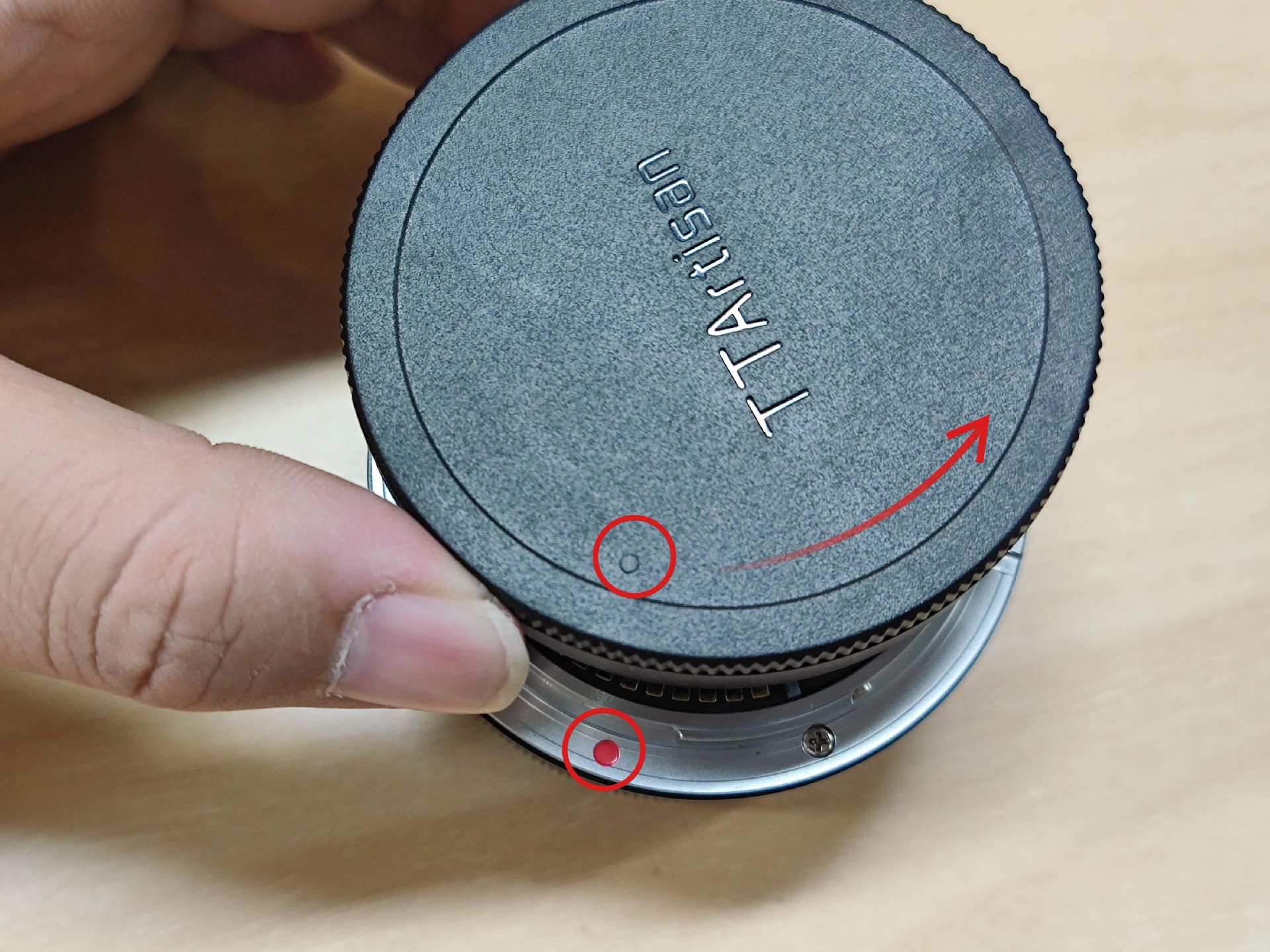

Align the small bump with the red dot and snap it in, then turn the lens cap counterclockwise until you hear the sound of snapping ( as shown in Figures 3).

STEP.3

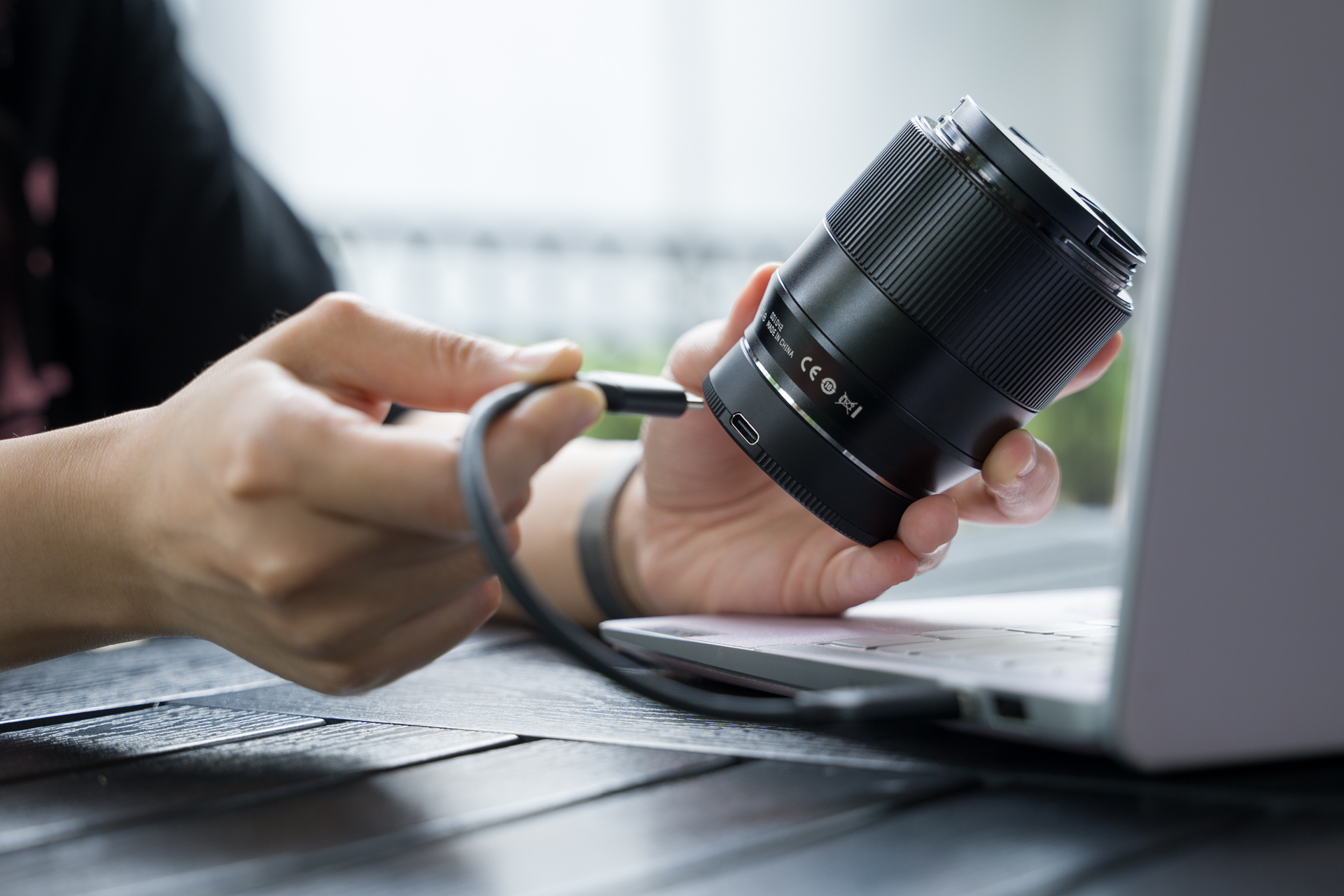

Use the Type-C USB cable to connect the lens cap to the computer, and check whether there is a USB drive on the computer. If not, try repeatedly plugging and unplugging the USB-A port on the computer side until it works (as shown in Figures 4).

STEP.4

Find the "TTARTISAN" USB drive (as shown in Figures 5).

STEP.5

Click the "DeviceInformation.txt" in the USB drive to check the version number (as shown in Figures 6).

STEP.6

Right-click on the upgrade firmware file -> Send to -> TTARTISAN (as shown in Figures 7).

STEP.7

Waiting for the copy progress bar to complete (as shown in Figures 8).

STEP.8

When the copy progress bar completed, that means the upgrade is completed, eject the "TTARTISAN" USB drive and unplug the Type-C USB cable (as shown in Figures 9).

LAST STEP.

Wait 5 seconds and then reconnect to the computer via Type-C USB cable, then click TTARTISAN->DeviceInformation.txt to check the version number. If it is the latest version number, the firmware update is successful(as shown in Figures 10).
